Successful installations

Please send me an email, if you have successfully installed magpar on a system different from those listed below: magpar(at)magpar.net



magpar version


various AMD and Intel dual and quad-core processors

CentOS 5
(64 bit)


using automated installation with Makefile.libs, GCC 4.2.1, and self compiled ATLAS 3.7.36 on 64-bit Linux

AMD Opteron Processor 250 (2 x 2.4 GHz)

Red Hat Enterprise Linux 3
(64 bit)


64-bit Linux

Sun UltraSPARC IV+

Sun Solaris 10
(64 bit)



AMD Athlon64 3200

(64 bit)


64-bit Linux

Intel Xeon, AMD Athlon MP

RedHat 7.3


using RedHat's GNU compilers 2.96, atlas3.6.0_Linux_ATHLON and Intel compilers

Pentium M

Debian 4.0 (etch), and Debian testing (lenny/sid)


using atlas3.6.0_Linux_P4SSE2, GCC 4.1.3, GCC 4.2.1

Pentium 4

RedHat 9


using RedHat's RPM packages for LAPACK, libpng, zlib; using MPICH, because mpi++.h is missing in RedHat's LAM/MPI

Apple PowerMac G5

Mac OS X 10.4.2 w/ Xcode 2.1


powerpc-apple-darwin8-gcc-4.0.0 (GCC) 4.0.0 (Apple Computer, Inc. build 5026) on Apple Macintosh running Mac OS X

Apple iBook G4 1.2 GHz

Mac OS X 10.3


Apple Macintosh running Mac OS X

Pentium III

Fedora Core 2


LAM/MPI 7.1.1

Alpha EV68

Tru64 5.1


DEC/Compaq/hp Alpha machines running OSF/1, Tru64 : using MPICH, dxml; Compaq AlphaServer SC45 V2.6 consisting of 11 ES45 nodes with 4 processors (1 GHz, 8 MB cache/CPU) each and 16 GB RAM/node, connected with Quadrics Supercomputer World high speed interconnect

Alpha EV6 (21264)

Tru64 5.0A


using MPICH, using dxml

Alpha EV56

RedHat 6.2


g++ is broken, compiled PETSc only with BOPT=O (no C++ support, no TAO, no energy minimization), self compiled ATLAS

Alpha EV5 (21164)

Tru64 4.0F


patching of $PETSC_DIR/src/sys/viewer/impls/mathematica necessary: replace snprintf by sprintf (see below: DEC/Compaq/hp Alpha machines running OSF/1, Tru64); using dxml

AMD Athlon

RedHat 6.2


original RedHat C++ compiler [gcc version egcs-2.91.66 19990314/Linux (egcs-1.1.2 release)] is broken
compiled PETSc BOPT=O_c++ with g++ of gcc 3.3.1 (compiled from source)
using atlas3.4.1_Linux_ATHLON

Intel Xeon 2.4 GHz

Windows XP


see below: Compiling magpar in Cygwin for Windows, Running magpar on Windows, and Single processor version without MPI

64-bit Linux

On recent 64-bit Linux distributions, the Installation instructions apply and the installation works out of the box. Still, the following suggestions might be helpful.


Compilation of magpar and all required libraries on AMD 64-bit processors (Athlon64, Opteron) running 64-bit Linux.

Solution 1

AMD Opteron Processor 250 (2 x 2.4 GHz) running Red Hat Enterprise Linux WS release 3 (Taroon Update 4)

LAPACK: The (incomplete) implementation distributed with ATLAS works: http://prdownloads.sourceforge.net/math-atlas/atlas3.6.0_Linux_HAMMER64SSE2.tar.gz?download

Otherwise use RedHat's LAPACK rpm "lapack-3.0-20" - also available from RPMfind: ftp://rpmfind.net/linux/redhat/enterprise/3/en/os/i386/SRPMS/lapack-3.0-20.src.rpm

The generic LAPACK from netlib does not work!

Everything else works as described in the Installation instructions.

Solution 2

submitted by Richard Boardman (thanks!):

Good news! I've managed to get magpar running on a pure 64-bit Linux system on AMD64. It was a bit of an adventure.

ATLAS: This needed to be built manually, as it looks like they've not used -fPIC (position independent code) everywhere. I needed to get the source and override (despite the warnings) the compiler flags to send -fPIC and -m64 to both the C and the Fortran components (IIRC)

LAPACK: Setting the -fPIC flags and the -m64 thing does the trick, apart from at the link stage. Two files needed to be compiled manually (and then the linking done manually):

  g77 -c -m64 -fPIC dlamch.f
  g77 -c -m64 -fPIC slamch.f

as LAPACK tries to compile these and these alone (weird) without the PIC.

MPI(CH): absolutely must have the -fPIC and the -m64 stuff in there. I think it's pretty much OK to go with:

  CFLAGS="-fPIC -m64" FFLAGS="-fPIC -m64" RSHCOMMAND="ssh" \
  ./configure && make

though watch out - if PETSc fails, then check carefully where the R_X86_64_32 relocation error occurred and (a) try and make the natural build process cover this, (b) manually build it if this fails. I guess this is true for all of them.

PETSc: The above stages are necessary for PETSc 2.2.(0) - assuming everything above went to plan, then PETSc will build, but make sure the following lines in bmake/linux/variables are set:

  C_CC            = gcc -fPIC -m64
  C_FC            = g77 -Wno-globals -fPIC -m64
  O_COPTFLAGS     = -O -Wall -Wshadow  -fomit-frame-pointer -fPIC -m64
  O_FOPTFLAGS     = -O -fPIC -m64
  CXX_CC          = g++ -fPIC -m64
  CXX_FC          = g77 -Wno-globals -fPIC -m64
  GCXX_COPTFLAGS  = -g -m64 -fPIC

Here is a suggestion for (quite pedantic ;-) compile flags for PETSc:

  export CFLAGS="-O3 -fPIC -march=k8 -msse2 -m64 -mfpmath=sse -m3dnow
  -fexpensive-optimizations -fforce-addr -fforce-mem -finline-functions
  -funroll-loops -Wall -Winline -W -Wwrite-strings -Wno-unused"

zlib, libpng and magpar: These should have -m64 -fPIC in their build process for consistency.

If all this is done, hopefully a nice static pure 64-bit binary should be built, Opteron-friendly :)

Intel compilers

(tested with Intel compiler (icc, ifort) version 9.0)

In order to compile magpar (and all the libraries) with the Intel compilers one can just add the following snippet to the host specific Makefile.in.$HOSTNAME or Makefile.in (update paths to your installation directories!)

  CPP=/usr/local/bin/icc -E

  # Generate code for Intel Pentium 4 processors and enables new
  # optimizations in addition to Intel processor-specific optimizations.
  OPTFLAGS += -O3 -xN
  # http://icl.cs.utk.edu/lapack-forum/viewtopic.php?t=295
  NOOPT = -O3 -fltconsistency

These settings are required especially for the compilation of LAPACK (set the variables in the make.inc file) as discussed here: http://icl.cs.utk.edu/lapack-forum/viewtopic.php?t=295

It is possible to use the precompiled ATLAS libraries, even though the Intel Math Kernel Library, which implements all BLAS and LAPACK routines, might be a good option, too.

The configuration of PETSc might fail when it tests the linking of Fortran object files with mpicc. To solve this problem it is necessary to add "-lirc" to "MPI_OTHERLIBS" in mpif90.

If you use Makefile.libs to install the libraries, it will use the settings in Makefile.in.$HOSTNAME or Makefile.in.defaults. If you compile by hand, define the variables above on the command line (and export them if necessary).

Apple Macintosh running Mac OS X


Compilation of magpar and all required libraries on Apple Macintosh running Mac OS X.

Solution 1

submitted by Richard Boardman (thanks!)
tested on Apple iBook G4 1.2 GHz with Mac OS X 10.3

I got everything up and running on Darwin/G4 [OSX to everyone else ;)]; here are a few observations.

1] get Fink* from SourceForge.net: Fink is a Debian-like package manager for Mac OS X, and contains amongst other things ATLAS and LAPACK

2] get ATLAS from Fink

3] get LAPACK from Fink

4] download MPICH and configure as usual I believe LAM/MPI and/or the packages from Fink might work, too.

5] ParMetis-3.1

6] SUNDIALS - download and configure as usual

7] PETSc 2.3.0

Copy PETSc-config-magpar.py to darwin-gnu-magpar.py

  cp PETSc-config-magpar.py darwin-gnu-magpar.py

update it (Fink installs the libraries, e.g. ATLAS, LAPACK, in /sw) and add the following line to the "configure_options":

  '--with-cxx=g++', # mpiCC does not work (some case sensitivity issue)

Then, configure and run as usual.

8] TAO, zlib, and libpng as usual

Solution 2

submitted by Greg Parker (thanks!)
tested on Apple PowerMac G5 2x2.0 GHz with Mac OS X 10.4.1 w/ Xcode 2.1 and
Apple PowerMac G5 2x2.5 GHz with Mac OS X 10.4.1 w/ Xcode 2.0

Turns out things are pretty easy on Tiger. No need for Fink or a Fortran compiler. Apple supplies their own BLAS/LAPACK libraries and headers, so no need for Atlas or Lapack. If they are installed, the configure system of PETSc 2.3.0 finds them by itself.

LAM/MPI: Download lam-7.1.1.dmg.gz from http://www.lam-mpi.org/7.1/download.php and use the installer, which puts it in /usr/local/...

Then type:

  cd $PD
  mkdir mpi
  cd mpi
  ln -s /usr/local/bin
  ln -s /usr/local/include
  ln -s /usr/local/lib
  export PATH
  lamboot -v

ParMetis 3.1: Edit $MAGPAR_HOME/ParMetis-3.1/Makefile.in (do not modify CC or LD variables as described here: ParMetis )

  # INCDIR = -I/usr/local/include -I/usr/include -I/usr/include/malloc
  # LIBDIR = -L/usr/local/lib -L/usr/lib

and compile as usual.

SUNDIALS 2.1.0: Configure with the following command

  ./configure --disable-f77 --with-mpi-incdir=$PD/mpi/include --with-mpi-libdir=$PD/mpi/lib

and compile as usual.

PETSc 2.3.0

  ./config/configure.py --with-fortran=0 --with-mpi-include=$PD/mpi/include \
    --with-clanguage=cxx --with-debugging=0 \
    --with-mpi-lib=[$PD/mpi/lib/libmpi.a,$PD/mpi/lib/liblammpi++.a,$PD/mpi/lib/liblam.a] \
    --with-cxx=mpic++ -CXXOPTFLAGS="-O3 -Wno-long-double" --with-mpirun=mpirun
  PETSC_ARCH=<arch> # where <arch> is whatever config said, e.g. darwin8.2.0
  export PETSC_ARCH
  export PETSC_DIR
  make all
  make test # be sure to have X11 running first, if it fails, may have to type 'lamboot -v' again


  cp scripts/makefile.macosx ./makefile
  make # you will get errors compiling pngtest, but you can ignore them

Compiling magpar itself

In Makefile.in change the PETSc architecture to whatever PETSc's config said above

  PETSC_ARCH = <arch>
  CFLAGS += -O2 -faltivec

Optimized BLAS libraries

It is highly recommended to use any machine specific (vendor provided and highly optimized) libraries. On most high performance machines there are optimized BLAS and LAPACK libraries available, e.g.:

In addition, the following implementations are available:

Precompiled packages on Ubuntu/Debian

Using Debian-based distributions (including Ubuntu) one can save a lot of time by using some of the pre-built packages.

The following instructions pertain specifically to Debian Lenny and were used successfully in June 2008 and saved in Makefile.in.host_debian, which can serve as a template for your Makefile.in.$HOSTNAME.


PETSc and Sundials still have to be compiled from source, since the Debian packages were built for uniprocessor systems only and do not work with MPICH. TAO also must be built from source. For this purpose one can still use the Automated Installation for the individual libraries like this

  cd $MAGPAR_HOME/src
  make -f Makefile.libs sundials petsc tao

or install them using the Manual Installation method.

Thanks to Daniel Lenski for his installation report.

Compiling LAPACK on RedHat9 exits with an error


The GNU Fortran compiler shipping with RedHat 9 (GNU Fortran (GCC 3.2.2 20030222 (Red Hat Linux 3.2.2-5))) has problems with complex variables.

  SEP: Testing Symmetric Eigenvalue Problem routines
  ./xeigtstc < sep.in > csep.out 2>&1
  make: *** [csep.out] Error 139

At this stage, the LAPACK library has been compiled successfully, but the complex test programs fail.


Since magpar does not use any complex variables, one can safely ignore this error message and continue with the installation.

PETSc does not compile on RedHat 6.2 with BOPT=g_c++ or BOPT=O_c++


The GNU C++ compiler shipping with RedHat 6.2 (gcc version egcs-2.91.66 19990314/Linux (egcs-1.1.2 release)) is broken and fails with an internal error:

  libfast in: /home/scholz/work/magpar/libs/petsc-2.1.6/src/vec/esi
  eindexspace.c: In method `::esi::petsc::::esi::petsc::IndexSpace<int>::
  IndexSpace(class ::esi::::esi::IndexSpace<int> &)':
  eindexspace.c:21: Internal compiler error.


GCC 2.95.3 (shipping with SuSE 8.0), GCC 2.95.4 (shipping with Debian 3.0 woody) and GCC 3.2.2 have proved to work. Get some binary package for your platform or compile GCC from source.

You can get the latest GCC release from here:

DEC/Compaq/hp Alpha machines running OSF/1, Tru64

Problems linking various libraries with "ar"


The following error occured on a Compaq machine running Tru64 UNIX V5.1A (Rev. 1885):

  /: write failed, file system is full
  ar:  error writing archive member contents: [...]
  *** Exit 1

after compiling the source files of MPICH (and ParMetis-3.1, too) when "make" tried to create the libraries using "ar".


Set the environment variable "TMPDIR" to a directory/partition with sufficent free space, e.g. your home directory:

  export TMPDIR

and recompile.

Problems with snprintf

Tru64 version 4.x does not provide an "snprintf" function. Thus, the compilation of PETSc fails in $PETSC_DIR/src/sys/src/viewer/impls/mathematica/. A simple replacement of snprintf by sprintf and omitting the size argument solves the problem.

in $PETSC_DIR/src/sys/src/viewer/impls/mathematica/mathematica.c

  snprintf(linkname, 255, "%6d", ports[rank]);


  sprintf(linkname, "%6d", ports[rank]);

and all other occurences of snprintf in this file accordingly.

Compiling ParMetis

If you are using the ELAN libraries (for Quadrics high speed interconnect) instead of MPI(CH) over Ethernet:

  # modify $MAGPAR_HOME/src/Makefile.in to use
  # the normal C compiler instead of mpicc
  CC = cc
  XTRALIBS = -lmpi -lelan
  LD = cc
  # test example
  prun -p scp1 -n 4 -s -o out -e err ./ptest rotor.graph

Otherwise use a "normal" MPI library (MPICH, LAM/MPI) and compile as usual.

Compiling SUNDIALS version 2.1

If you are using the ELAN libraries (for Quadrics high speed interconnect) instead of MPI(CH) over Ethernet:

  # use the normal C and Fortran compilers instead of mpicc and mpif77
  ./configure --with-mpicc=cc --with-mpif77=f77

Compiling SUNDIALS version 1.0

  cd $PD/sundials

  # replace compiler "gcc" by "cc"
  # remove compiler option "-ffloat-store"
  files=`find . -name "*"`
  for i in `grep -l "CFLAGS =" $files`; do
    sed "s/gcc/cc/g" $i | sed "s/-Wall -ffloat-store//g" > $i.tmp
    mv $i.tmp $i

  # optional: compile with optimizations
  # (no improvement/speedup found)
  for i in `grep -r -l "CFLAGS =" $files`; do
    sed "s/CFLAGS = /CFLAGS = -O3 /g" $i > $i.tmp
    mv $i.tmp $i

  unset files

Compiling PETSc 2.3.0

Install Python (if necessary) as described in the Installing Python.
Modify $MAGPAR_HOME/src/PETSc-config-magpar.py:

  # use Compaq Extended Math Library (CPML/CXML)
  # use ELAN libraries (if you have Quadrics high speed interconnect)

Otherwise use a "normal" MPI library (MPICH, LAM/MPI) and compile as usual.

Compiling PETSc 2.2.1 and earlier

  export PETSC_DIR
  # choose suitable predefined configuration (directory name) for your platform
  export PETSC_ARCH
  cd ..
  ln -s predefined/$PETSC_ARCH
  cp packages packages.bak
  # edit the file "packages":
  # Location of BLAS and LAPACK
  # BLASLAPACK_LIB = -ldxml
  # use ELAN libraries (if you have Quadrics high speed interconnect)
  # MPI_LIB        = -L${MPI_HOME}/lib -lmpi -lelan
  # otherwise use MPICH (as usual)
  cp petscconf.h petscconf.h.bak
  # edit petscconf.h if you want to have static binaries (recommended):
  # replace "#define PETSC_USE_DYNAMIC_LIBRARIES 1"
  # add "#define PETSC_HAVE_NETDB_H"
  # (if you really have a "netdb.h" somewhere in /usr/include)

Compiling libpng

  cp scripts/makefile.dec Makefile
  # edit the Makefile if necessary:
  # update the paths to zlib:
  # ZLIBLIB=../zlib-1.1.4 -lz -lm
  # ZLIBINC=../zlib-1.1.4
  make test

Compiling magpar

Update Makefile.in if you are using PETSc 2.2.1 or earlier:

  # set the proper PETSC_ARCH (which was used for compiling PETSc):
  # PETSC_ARCH  = alpha
  # link statically:
  # CLINKER_STATIC = -non_shared
  # optional: really tough checking with Tru64's cc:
  # CFLAGS     += -portable -check -verbose

magpar crashes with a segmentation violation


This segmentation fault might happen during mesh refinement, mesh partitioning (or really just the first call to a METIS function). In parteleser.c, for example, METIS_MeshToDual is called to convert the mesh into its dual graph and obtain the adjacency structure of the mesh. If you happen to have a very weird mesh in which many elements share a single node, some static arrays in Metis are too small.


You can either generate a better mesh (if this problem occurs many elements are terribly degenerate with high aspect ratio and low quality factor anyway) or patch METIS:

Edit $PD/ParMetis-3.1.1/METISLib/mesh.c:79 and increase the array size:

  idxtype *mark, ind[500], wgt[500];

Then you have to recompile the ParMetis package and recompile magpar:

  cd $PD/ParMetis-3.1.1/
  cd $MAGPAR_HOME/src/
  # remove the magpar binary, so a new one is linked
  rm magpar.exe

Single precision arithmetics

NB: magpar does not appear to work in single precision mode at all right now! There seem to be big problems with the KSP and TAO solvers (convergence issues!?).

To compile magpar with single precision floating point arithmetics:

set floating point precision in Makefile.in.$HOSTNAME


patch TAO to make it compile with PETSc in single precision (patch not available yet)

recompile PETSc, Sundials, TAO

  make -f Makefile.libs petsc tao sundials

recompile magpar


Single processor version without MPI

Compile magpar according to the Installation instructions with the following modifications:


In $PD/ParMetis-3.1.1/METISLib/metis.h remove line 25:

  #include "../parmetis.h"  /* Get the idxtype definition */

Compile serial version only:

  cd METISLib
  make CC=gcc LD=gcc

Do not use Metis-4.0.1 (November 1998), because it contains a couple of bugs, which have been ironed out in the Metis version included in ParMetis!


  ./configure --prefix=$PWD --disable-mpi
  make -i install


modify $MAGPAR_HOME/src/PETSc-config-magpar.py:
comment out all MPI related lines except for:


Then configure and compile as usual.

Compiling magpar in Cygwin for Windows

Here is a recipe for compiling magpar in the Cygwin environment on a Windows machine:

In Makefile.in.defaults or your own Makefile.in.$HOSTNAME set


to use Cygwin's LAPACK.

Follow the general Installation instructions and those for Single processor version without MPI. If magpar is compiled in the Cygwin environment, magpar will generate complete inp files (cf. project.INP.inp).

In addition, users have reported successful parallel magpar installations/runs with MPICH in the Cygwin environment:

magpar executables for Windows and the source code of all required libraries are available on the magpar homepage.

Compiling magpar using the MinGW compilers in Cygwin

This section describes the procedure for compiling magpar using the MinGW compilers in the Cygwin environment on a Windows machine. The advantage over compilation with the native Cygwin compilers is, that the MinGW compiled executables do not require the cygwin.dll any more and the other libraries (see Running magpar on Windows) are linked statically into the executable. Compilation in the native MinGW/MSYS environment does not work (easily), because of PETSc using Python for its configuration.

Currently, the Windows version of magpar has only been compiled and tested in serial model (without MPI support). Thus, the installation procedure described in Single processor version without MPI should be used with the following modifications:

Install Cygwin as described in Compiling magpar in Cygwin for Windows with the addition of packages of the MinGW compilers (included in category "Devel"). The package names are gcc-mingw, gcc-mingw-core, gcc-mingw-g++, gcc-mingw, gcc-mingw-g77.

Compile the required libraries with the following changes (the most important being the addition of the "-mno-cygwin" option for the compilers):


  cp make.inc.example make.inc
  # generate BLAS and LAPACK libraries (no optimized BLAS for now)
  make FORTRAN=g77 LOADER=g77 TIMER=EXT_ETIME OPTS="-funroll-all-loops -O3 -mno-cygwin" blaslib lapacklib
  cp blas_LINUX.a libblas.a
  cp lapack_LINUX.a liblapack.a


  make CC=gcc LD=gcc CFLAGS="-O3 -I. -mno-cygwin"


  ./configure --prefix=$PWD --disable-mpi --with-cflags=-mno-cygwin --with-ldflags=-mno-cygwin


  export PRECISION=double
  export OPTFLAGS="-mno-cygwin"
  export ATLAS_DIR=/usr/lib
  export PETSC_XTRALIBS=""

After running ./config/PETSc-config-magpar.py remove the following flags from $PETSC_DIR/PETSc-config-magpar/include/petscconf.h (or $PETSC_DIR/bmake/PETSc-config-magpar/petscconf.h for PETSc 2.3.x):


simple sed script:

	hfile=bmake/PETSc-config-magpar/petscconf.h; \
	cp $hfile $hfile.bak; \
	cat $hfile.bak | \
	sed "/PETSC_HAVE_GETPAGESIZE/,+2 d" | \
	sed "/PETSC_HAVE_NETDB_H/,+2 d" | \
	sed "/PETSC_HAVE_PWD_H/,+2 d" | \
	sed "/PETSC_HAVE_SYS_PROCFS_H/,+2 d" | \
	sed "/PETSC_HAVE_SYS_RESOURCE_H/,+2 d" | \
	sed "/PETSC_HAVE_SYS_TIMES_H/,+2 d" | \
	sed "/PETSC_HAVE_SYS_UTSNAME_H/,+2 d" \
	> $hfile


  make CFLAGS="-O -mno-cygwin"


  # make sure $PD is set correctly
  lib=libpng-1.2.33  # adjust to your version of libpng
  zlib=zlib-1.2.3    # adjust to your version of zlib
  ./configure --prefix=$PD/$lib --enable-shared=no CFLAGS="-I$PD/$zlib -mno-cygwin" LDFLAGS="-L$PD/$zlib -mno-cygwin" 2>&1 | tee configure.log
  make && make install && make check


  # a simple "make" will compile and link the magpar executable

After compiling magpar (or really any program) one can check which DLLs the program depends on using

  objdump -p magpar.exe

see also: http://www.delorie.com/howto/cygwin/mno-cygwin-howto.html

Running magpar on Windows

To run magpar on Windows either check Compiling magpar in Cygwin for Windows or download the archives containing the precompiled binaries from the magpar download page.

One zip archive contains the (executable) program itself and the required libraries:

To run a magpar simulation

The precompiled magpar executable provided

Graphical User Interface for Windows

The Windows executables of magpar are simple programs which just run in a terminal window without any nice user interface. However, thanks to the work of Tomasz Blachowicz and Bartlomiej Baron there is now also a nice graphical user interface for magpar available: MagParExt

Here is a quick introduction how to use it:

  1. Download MagParExt from its homepage and install it.
  2. Copy magpar.exe and the DLLs into a project (e.g. example) directory
  3. Launch MagParExt
  4. assign a new name to your project (independent of the magpar project/simName)
  5. Point MagParExt to the project directory using the "Project files/Browse..." button
  6. Check/modify the simulation parameters using the "Simulation/Configure..." button
  7. Check/modify the material parameters using the "Materials/Configure..." button
  8. Configure the application path to magpar.exe using "Options/General"
  9. If a copy of the Cygwin DLLs is installed in "C:\Windows" there is no need to copy them into each project diretory.
  10. Run the simulation using the "Simulation/Run" button
  11. When the simulation finishes import the output data using the "Output data/Import from file..." button (make sure you open the *.log file in the correct directory)
  12. Click on "Output data/Preview" to have a look at the log file
  13. Visualize the results using "Graphs"
  14. Add "Add new graph..." and assign a name to the graph
  15. Set up "Data Series" by selecting data for x- and y-axis and click "Add"
  16. Click "Ok" to view the plot
  17. Go to "Animations" and press play to view them.

See the paper by Tomasz Blachowicz and Bartlomiej Baron in the list of Publications and online at [ arXiv ].

Installing Python

If you do not have Python installed on your system or your Python version is older than 2.2. then download the latest source package of Python, configure, compile, and install it with

  ./configure --prefix=$PD/python
  make install

and update $MAGPAR_HOME/src/PETSc-config-magpar.py with the full path to the python binary, e.g.


(the environment variable "$MAGPAR_HOME" does not work here!)

Additional solvers and libraries for PETSc

These libraries are optional and they make additional preconditioners/linear solvers available to PETSc. They are not required for magpar.
Please consult the PETSc manual on how to make use of these additional solvers.


  cd $PD
  wget ftp://info.mcs.anl.gov/pub/BlockSolve95/BlockSolve95.tar.Z
  tar xzvf BlockSolve95.tar.Z
  cd BlockSolve95/bmake/linux
  # edit linux.site:
  # Location of BLAS and LAPACK.  These libraries are available via Netlib,
  # or see $(BS_DIR)/readme for information on retrieving a subset.
  # FC_LIB         =  -lg2c -lm
  # BLAS_LIB     = -L${MAGPAR_HOME}/libs/atlas/lib -llapack -lf77blas -latlas $(FC_LIB)
  # Location of MPI (Message Passing Interface) software
  # MPI_HOME     = ${MAGPAR_HOME}/libs/mpi
  # for MPICH:
  # MPI_LIB      = -L${MPI_HOME}/lib -lmpich -lpmpich # -lfmpich
  # for LAM/MPI:
  # MPI_LIB      = -L${MPI_HOME}/lib -lmpi -llamf77mpi -llam
  # MPI_INCLUDE  = -Dmpi -I${MPI_HOME}/include
  # MPIRUN       = ${MPI_HOME}/bin/mpirun
  # Location of BlockSolve95
  # BS_INCLUDE     = -I${MAGPAR_HOME}/libs/BlockSolve95/include
  # BS_LIB         = -L${MAGPAR_HOME}/libs/BlockSolve95/lib/libO/${PETSC_ARCH} -lBS95
  cd $PD/BlockSolve95
  export PETSC_ARCH
  make ACTION=lib BOPT=O tree # use BOPT=O even if you use O++ for PETSc below!


This library is optional and makes additional preconditioners/linear solvers available to PETSc. It is not required for magpar.
Please consult the PETSc manual on how to make use of these additional solvers.

  cd $PD
  wget http://www.llnl.gov/CASC/hypre/download/hypre-1.8.2b.tar.gz
  tar xzvf hypre-1.8.2b.tar.gz
  cd hypre-1.8.2b/src
  # for MPICH
  ./configure --with-mpi-include=${MAGPAR_HOME}/libs/mpich/include \
              --with-mpi-libs="mpich pmpich fmpich" \
              --with-mpi-lib-dirs=${MAGPAR_HOME}/libs/mpich/lib \
              --with-blas="-I${MAGPAR_HOME}/libs/atlas/include \
              -L${MAGPAR_HOME}/libs/atlas/lib -llapack -lf77blas -latlas -lg2c"
  # for LAM/MPI
  ./configure --with-mpi-include=${MAGPAR_HOME}/libs/lam/include \
              --with-mpi-libs="mpi lamf77mpi lam" \
              --with-mpi-lib-dirs=${MAGPAR_HOME}/libs/lam/lib \
              --with-blas="-I${MAGPAR_HOME}/libs/atlas/include \
              -L${MAGPAR_HOME}/libs/atlas/lib -llapack -lf77blas -latlas -lg2c"
  # fix utilities/fortran.h (remove one underscore at end of line)
  # line 31: define hypre_NAME_C_CALLING_FORT(name,NAME) name##_
  # line 32: define hypre_NAME_FORT_CALLING_C(name,NAME) name##_


This library is optional and makes additional preconditioners/linear solvers available to PETSc. It is not required for magpar.
Please consult the PETSc manual on how to make use of these additional solvers.

  cd $PD
  wget http://crd.lbl.gov/~xiaoye/SuperLU/superlu_dist_2.0.tar.gz
  tar xzvf superlu_dist_2.0.tar.gz
  cd SuperLU_DIST_2.0
  # edit make.inc:
  # PLAT            = _linux
  # DSuperLUroot    = ${MAGPAR_HOME}/libs/SuperLU_DIST_2.0
  # BLASLIB         = -L${MAGPAR_HOME}/libs/atlas/lib -llapack -lf77blas -latlas -lg2c
  # for MPICH
  # MPILIB          = -L${MAGPAR_HOME}/libs/mpi/lib -lmpich -lpmpich
  # for LAM/MPI
  # MPILIB          = -L${MAGPAR_HOME}/libs/mpi/lib -lmpi -llamf77mpi -llam
  # CC              = ${MAGPAR_HOME}/libs/mpi/bin/mpicc
  # CFLAGS          = -O3
  # FORTRAN         = ${MAGPAR_HOME}/libs/mpi/bin/mpif77
  # FFLAGS          = -O3
  # LOADER          = ${MAGPAR_HOME}/libs/mpi/bin/mpicc
  # LOADOPTS        = #
  # CDEFS           = -DAdd_

Links to other FAQs, troubleshooting guides

An extensive list of known problems and difficulties is listed on the PETSc website:

What is "magpar" worth (at least ;-) ?

Total Physical Source Lines of Code (SLOC)                = 11,632
Development Effort Estimate, Person-Years (Person-Months) = 2.63 (31.56)
 (Basic COCOMO model, Person-Months = 2.4 * (KSLOC**1.05))
Schedule Estimate, Years (Months)                         = 0.77 (9.28)
 (Basic COCOMO model, Months = 2.5 * (person-months**0.38))
Estimated Average Number of Developers (Effort/Schedule)  = 3.40
Total Estimated Cost to Develop                           = $ 355,287
 (average salary = $56,286/year, overhead = 2.40).

generated using David A. Wheeler's SLOCCount version 2.26

Other micromagnetics software

Here are a few links to other free and commercial micromagnetics packages:

Installation of old library versions


  cd $PD
  wget ftp://ftp.mcs.anl.gov/pub/mpi/mpich.tar.gz
  tar xzvf mpich.tar.gz
  cd mpich-1.2.6
  # patch -p0 < ../patchfile
  #  if you experience problems applying the patch
  #  go back to the original mpich.tar.gz
  make testing
  # Problems with RedHat 6.2 bash: testing fails
  # solution: replace bash version 1 with version 2:
  # cd /bin; mv bash bash.bak; ln -s bash2 bash
  # install the binaries in $PD/mpich
  ./bin/mpiinstall -prefix=$PD/mpich
  # set symbolic link to MPICH installation directory
  cd $PD
  ln -s mpich mpi


  cd $PD
  wget http://www.lam-mpi.org/download/files/lam-7.1.2.tar.gz
  tar xzvf lam-7.1.2.tar.gz
  cd lam-7.1.2
  ./configure --prefix=$PD/lam
  make install
  # set symbolic link to LAM installation directory
  cd $PD
  ln -s lam mpi
  # start LAM universe on local machine:
  lamboot -v

How does boundary matrix size scale with mesh length?

Since the boundary matrix contains one row and one column for every surface node, it is clear that $\textrm{boundary matrix size} \sim (\textrm{number of surface nodes})^2$.

The surface of the mesh consists of triangles, edges, and points:


2D surface of a 3D tetrahedral mesh

Their numbers are:

\begin{eqnarray*} t & = & \textrm{number of triangles} \\ e & = & \textrm{number of edges} = \frac{3}{2}t \quad\quad\textrm{(3 edges/triangle, each shared by exactly two triangles)} \\ n & = & \textrm{number of nodes} \end{eqnarray*}

If the mesh is a continuous, perfect simple hexagonal mesh, then each node is shared by six triangles. There are three nodes per triangle and thus:

\begin{eqnarray*} n &=& (\textrm{number of triangles}) \times (\textrm{number of nodes/triangle}) / (\textrm{number of triangles sharing each node}) \\ &=& t \times 3 / 6 \\ &=& \frac{t}{2} \end{eqnarray*}

Consider the process of subdividing every triangle into four smaller triangles. This is what Magpar does when the -refine 1 option is given, and is effectively the same as reducing the mesh length by a factor of 2:

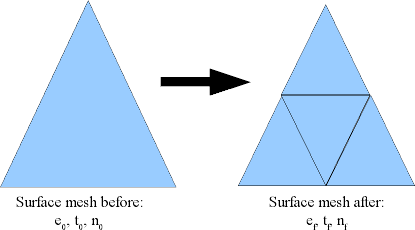

The effect of -refine 1 on a surface mesh

How are $e_f$, $t_f$, $n_f$ related to $e_0$, $t_0$, $n_0$?

  1. every triangle becomes four new triangles, thus $tf=4t_0$
  2. a new node is placed along every edge, thus $n_f=n_0+e_0$

Since $e=\frac{3}{2}t$, we get $n_f=n_0+\frac{3}{2}t_0$.

In the case of a simple hexagonal mesh: $t=2n$, thus $n_f=n_0+3n_0$, or $n_f=4n_0$. In this case, $n \sim (\textrm{mesh length})^{-2}$.

This is neither an upper bound nor a lower bound, since it is possible for there to be more than 6 triangles sharing each surface on average, or less than 6 on average. But most of the non-hexagonal cases I can think of are pretty pathological, and a quick glance at a mesh produced by Gmsh shows that surface nodes overwhelmingly are shared by 6 triangles.

From this we conclude that $n \sim (\textrm{mesh length})^{-2}$ to an excellent approximation. Since $(\textrm{boundary matrix size}) \sim (\textrm{number of surface nodes})^{2}$, we conclude that: $(\textrm{boundary matrix size}) \sim (\textrm{mesh length})^{-4}$

Interpolating in a tetrahedral mesh with barycentric coordinates

Barycentric coordinates are ideal for interpolation within a tetrahedral finite-element mesh (such as used by Magpar). Barycentric interpolation expresses the interpolated function as a weighted sum of the function's values at the four vertices of the tetrahedral cell in which the interpolation point lies. Basically, it assumes linearity of the function within the cell:

\[ f(\vec{x}) = f \left( \sum_{k=1}^4 \lambda_k \vec{v}_k \right) = \sum_{k=1}^4 \lambda_k f(\vec{v}_k) \quad\forall\; \vec{x} \in \textrm{ the tetrahedral volume with vertices } \vec{v}_1 ... \vec{v}_4 \]

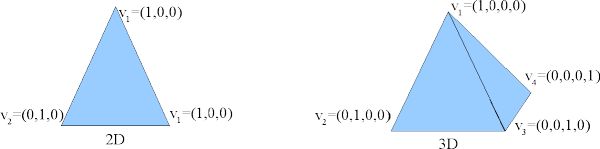

Barycentric coordinates on 2D and 3D simplices (triangles and tetrahedra)

From this basic description, we infer:

Given the linearity of this coordinate system, there must be a matrix $A$ that will transform from barycentric coordinates to Cartesian coordinates, that is $A\cdot\vec{\lambda}=\vec{x}$. For the 3D case, $\vec x$ is 3D and $\vec\lambda$ is 4D, thus $A$ is 3×4.

We know how A maps the tetrahedron's vertices to barycentric coordinates:

\[ A \left( \begin{array}{c}1\\0\\0\\0\end{array} \right) = \vec{v}_1, \quad A \left( \begin{array}{c}0\\1\\0\\0\end{array} \right) = \vec{v}_2, \quad A \left( \begin{array}{c}0\\0\\1\\0\end{array} \right) = \vec{v}_3, \quad A \left( \begin{array}{c}0\\0\\0\\1\end{array} \right) = \vec{v}_4, \quad \textrm{thus} \quad AI = A = \left(\begin{array}{cccc} v_{1x} & v_{2x} & v_{3x} & v_{4x} \\ v_{1y} & v_{2y} & v_{3y} & v_{4y} \\ v_{1z} & v_{2z} & v_{3z} & v_{4z} \end{array}\right) \]

So far so good, we can map barycentric coordinates to tetrahedral vertices. However, the reverse isn't there yet. We need to recall the additional constraint on the sum of the barycentric coordinates:

\[\sum_{k=1}^4 \lambda_k = 1\]

We can combine this with the matrix $A$ to get:

\[ T\vec\lambda = \left(\begin{array}{c}x\\y\\z\\1\end{array}\right) \quad\textrm{where}\quad T=\left(\begin{array}{cccc} v_{1x} & v_{2x} & v_{3x} & v_{4x} \\ v_{1y} & v_{2y} & v_{3y} & v_{4y} \\ v_{1z} & v_{2z} & v_{3z} & v_{4z} \\ 1 & 1 & 1 & 1 \end{array}\right), \quad\textrm{and thus}\quad \vec\lambda=T^{-1}\left(\begin{array}{c}x\\y\\z\\1\end{array}\right) \]

Now the inverse matrix, $T^{-1}$, maps from Cartesian coordinates to barycentric coordinates. Here's the complete algorithm to do barycentric interpolation of a point $\vec{x}$ within a tetrahedral mesh:

  1. Compute the barycentric coordinate transformation matrices $T$ for all the (nearby) cells in the mesh, and invert them to get $T^{-1}$.

  2. For each cell and interpolation point, compute $\vec\lambda=T^{-1}\vec{x}$.

  3. For each $x$, there will only be at most one $i$ such that $0 < \lambda_k < 1$ for $k=1...4$. If point $\vec{x}$ lies on the surface of a tetrahedron, there may be several choices with $0 \leq \lambda_k \leq 1$. Pick any one.

  4. Now we know (a) which cell $\vec x$ is in, (b) its barycentric coordinates $\vec\lambda$ relative to that cell, and (c) the vertices $\vec v_1$, $\vec v_2$, $\vec v_3$, and $\vec v_4$ of that cell. Now it's easy: the interpolated function at point $\vec x$ is simply the $\vec\lambda$-weighted average of the function's value at the vertices,

    \[ f_\textrm{interp}(\vec x)= \sum_{k=1}^{4} \lambda_k f(\vec v_k) \]

magpar - Parallel Finite Element Micromagnetics Package
Copyright (C) 2002-2009 Werner Scholz
